Low Carbon Heating
Air Source Heat Pump
A heat pump that thinks for itself. Wondrwall’s Air Source Heat Pump automatically optimises its own performance based on your home’s actual heat losses, live weather forecasts, and occupancy – so it’s always running at peak efficiency, never wasting energy on an empty home.
Available in 6kW, 8kW, and 12kW, it works in temperatures as low as -25°C, can deliver water up to 75°C to match existing radiator systems, and uses R290 refrigerant for a lower environmental impact than standard heat pumps.
Downloads
Download the datasheet
Share
The world’s most intelligent heat pump system
Reduce energy bills for heating by over 80%
aired with the Wondrwall Home Energy Management System, your heat pump automatically shifts to solar energy or cheaper off-peak tariffs — cutting heating bills by over 80% compared to a standard electric system.
Intelligent heat pump controls
Analysing occupancy patterns and predictive weather compensation mean your home is always warm when you need it and never wastes energy when you don’t – all managed from the Wondrwall app.
Book a call with a member of our team today.
Technical Details
| Product Code | WDR-HP-006-UK |
|---|---|
| Dimensions (W x H x D) | 1187 x 808 x 438mm |
| Net Weight | 110kg |
| Power Supply | 220-240-/50Hz |
| Refrigerant Type | R290 |
| Operation Range (Heating) | -25°C – 35°C |
| Water Outlet Temp Range (Heating) | 20°C – 75°C |
| Operation Range (Cooling) | 15°C – 45°C |
| Water Outlet Temp Range (Cooling) | 5°C – 25°C |
| Operation Range (DHW) | -25°C – 45°C |
| Water Outlet Temp Range (DHW) | 20°C – 65°C |
| Product Code | WDR-HP-008-UK |
|---|---|
| Dimensions (W x H x D) | 1287 x 908 x 458mm |
| Net Weight | 134kg |
| Power Supply | 220-240-/50Hz |
| Refrigerant Type | R290 |
| Operation Range (Heating) | -25°C – 35°C |
| Water Outlet Temp Range (Heating) | 20°C – 75°C |
| Operation Range (Cooling) | 15°C – 45°C |
| Water Outlet Temp Range (Cooling) | 5°C – 25°C |
| Operation Range (DHW) | -25°C – 45°C |
| Water Outlet Temp Range (DHW) | 20°C – 65°C |
| Product Code | WDR-HP-012-UK |
|---|---|
| Dimensions (W x H x D) | 1287 x 908 x 458mm |
| Net Weight | 134kg |
| Power Supply | 220-240-/50Hz |
| Refrigerant Type | R290 |
| Operation Range (Heating) | -25°C – 35°C |
| Water Outlet Temp Range (Heating) | 20°C – 75°C |
| Operation Range (Cooling) | 15°C – 45°C |
| Water Outlet Temp Range (Cooling) | 5°C – 25°C |
| Operation Range (DHW) | -25°C – 45°C |
| Water Outlet Temp Range (DHW) | 20°C – 65°C |

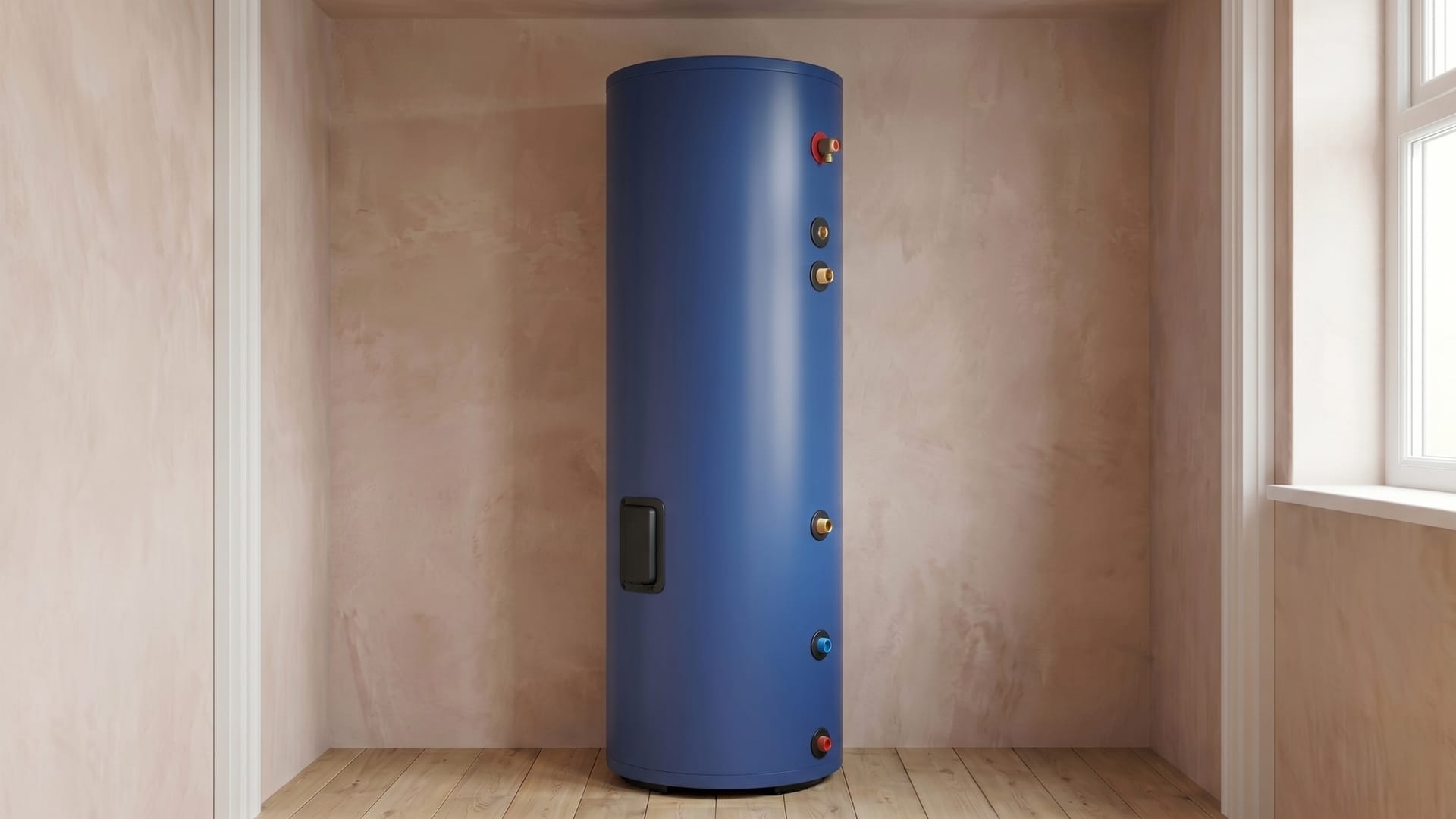

| Product Code | WDR-HT-250-UK |
|---|---|
| Dimensions (W x D x H) | 620 x 620 x 1638mm |
| Net Weight | 115kg |
| Heating Capacity | 2.2kW |
| Storage Size | 250 litres |
| COP | 4.15kW |
| Output Water Temp | 55°C (Max.75°C) |
| Power Input | 530W |
| Max Power Input | 3000W |
| Refrigerant type | R290 |
| Running Ambient Temp | -7°C – 43°C |
| Power Supply | 220V/50Hz |
| Certification | CE / UKCA |
| Product Code | WDR-HT-300-UK |
|---|---|
| Dimensions (W x D x H) | 620 x 620 x 2038mm |
| Net Weight | 130kg |
| Heating Capacity | 2.2kW |
| Storage Size | 300 litres |
| COP | 4.15kW |
| Output Water Temp | 55°C (Max.75°C) |
| Power Input | 530W |
| Max Power Input | 3000W |
| Refrigerant type | R290 |
| Running Ambient Temp | -7°C – 43°C |
| Power Supply | 220V/50Hz |
| Certification | CE / UKCA |
